Veterinary Multi-parameter Patient Monitor
Specification
Intended use:
12.1-inch high-resolution color TET LCD
display. Thinner and lighter in design,
convenient and portable for users.
Real-time S-T segment analysis,
pacemaker detection. Various

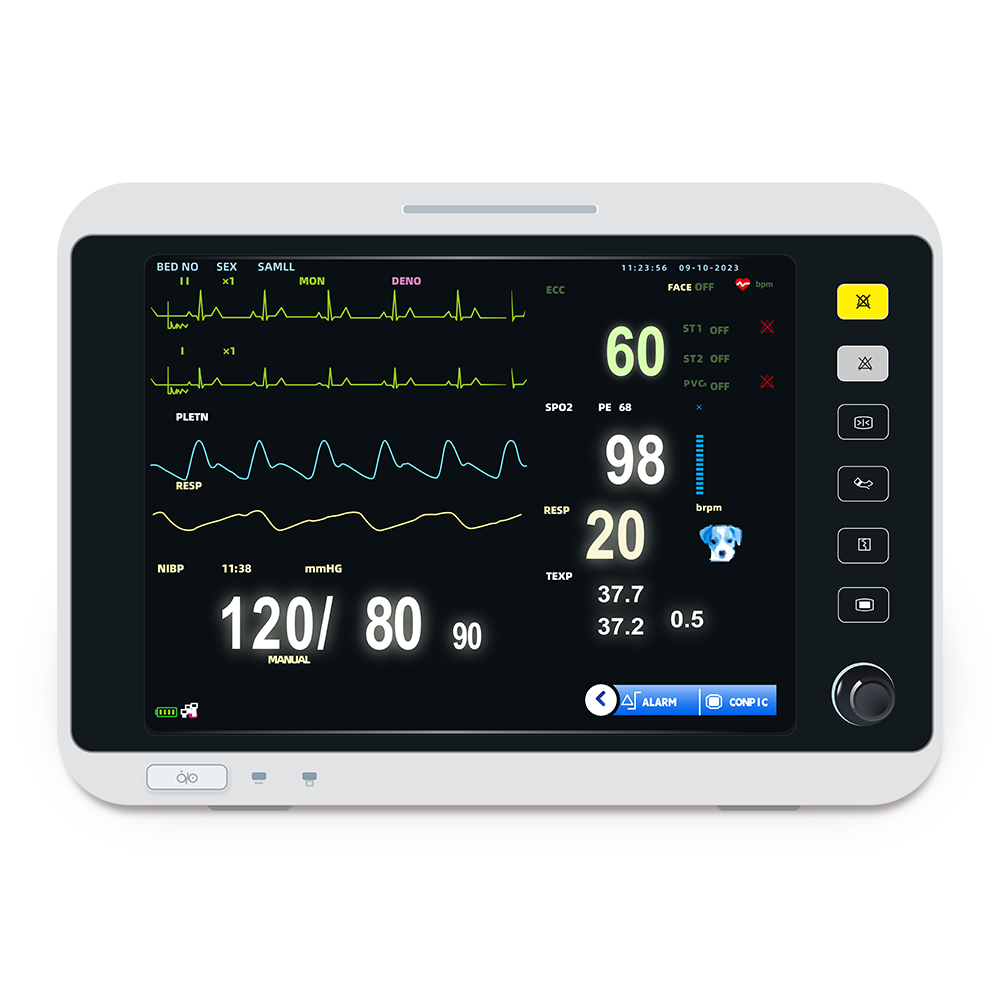

interfaces: standard screen, trend screen,
oxy CRG screen, NIBP list screen, big
front screen. 3-level audio/visual
alarms. Efficient resistance to interference
of defibrillator and HF knife. Up to 400
groups NIBP list, 6000seconds, ECG
waveform recall, 60 alarm event records
recall, 7-day trend chart in storage.
Built-in rechargeablelithium battery,
2-hour working capability.
ECG | |
Input | 3/5 wire ECG cable |
Lead section | I II III aVR, aVL, aVF, V |
Gain selection | *0.25, *0.5, *1, *2, Auto |
Sweep speed | 6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s |
Heart rate range | 15-30bpm |
Calibration | ±1mv |
Accuracy | ±1bpm or ±1% (select the bigger data) |
NIBP | |
Test method | Oscillometer |
Measurement type | Systolic Diastolic Mean |
Measurement parameter | Automatic, Continuous measurement |
Measurement method Manual | mmHg or ±2% |
SPO2 | |
Display Type | Waveform, Data |
Measurement range | 0-100% |
Accuracy | ±2% (between 70%-100%) |
Pulse rate range | 20-300bpm |
Accuracy | ±1bpm or ±2% (select the bigger data) |
Resolution | 1bpm |
2-Temperature (Rectal & Surface) | |
Number of channels | 2 channels |
Measurement range | 0-50℃ |
Accuracy | ±0.1℃ |
Display | T1, T2, ☒T |
Unit | ºC/ºF selection |
Refresh cycle | 1s-2s |
Respiration (Impedance & Nasal Tube) | |
Measurement type | 0-150rpm |
Accuracy | ±1bm or ±5%, select the bigger data |
Resolution | 1rpm |
Packing Information | |
Packing size | 38*35*30cm |
N.W. | 3kg |
G.W. | 5kg |
Size: 12 * 11.4 * 6.4 inch Weight: 5kg
Electrical Specification: 100-240v AC, 50/60Hz, Max Input Power: 70VA
Battery: 11.1V
2200mAh rechargeable lithium battery
Standard configuration: SpO2, PR, NIBP, ECG, RESP, TEMP Optional Configuration: Nellcor SpO2,
2-IBP, ETCO2, Touch screen, Built-in Thermal PrinterPackage Include:
1 x device
1 x Li-Battery
1 x Power line
1 x Earth wire
1 x User’s Manual
1 x Blood oxygen probe (for SpO2, PR)
1 x Blood pressure cuff (for NIBP)
1 x ECG cable (for ECG, RESP)
1 x Temperature probe (for Temperature)
