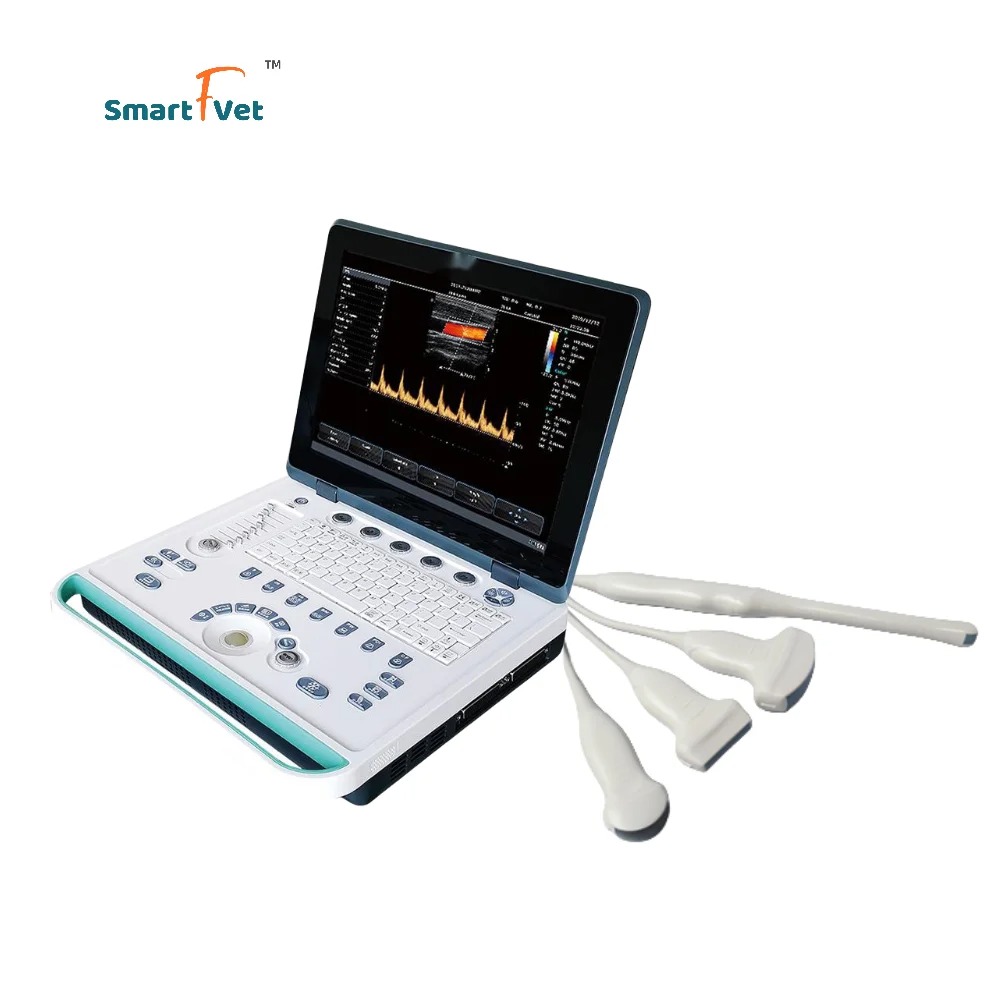

Color Doppler Portable Ultrasonic Scanner
Specification
| – Screen: 15inch LCD | – Cineplay: auto and manual, frames can set as 100/200/500/1000 |

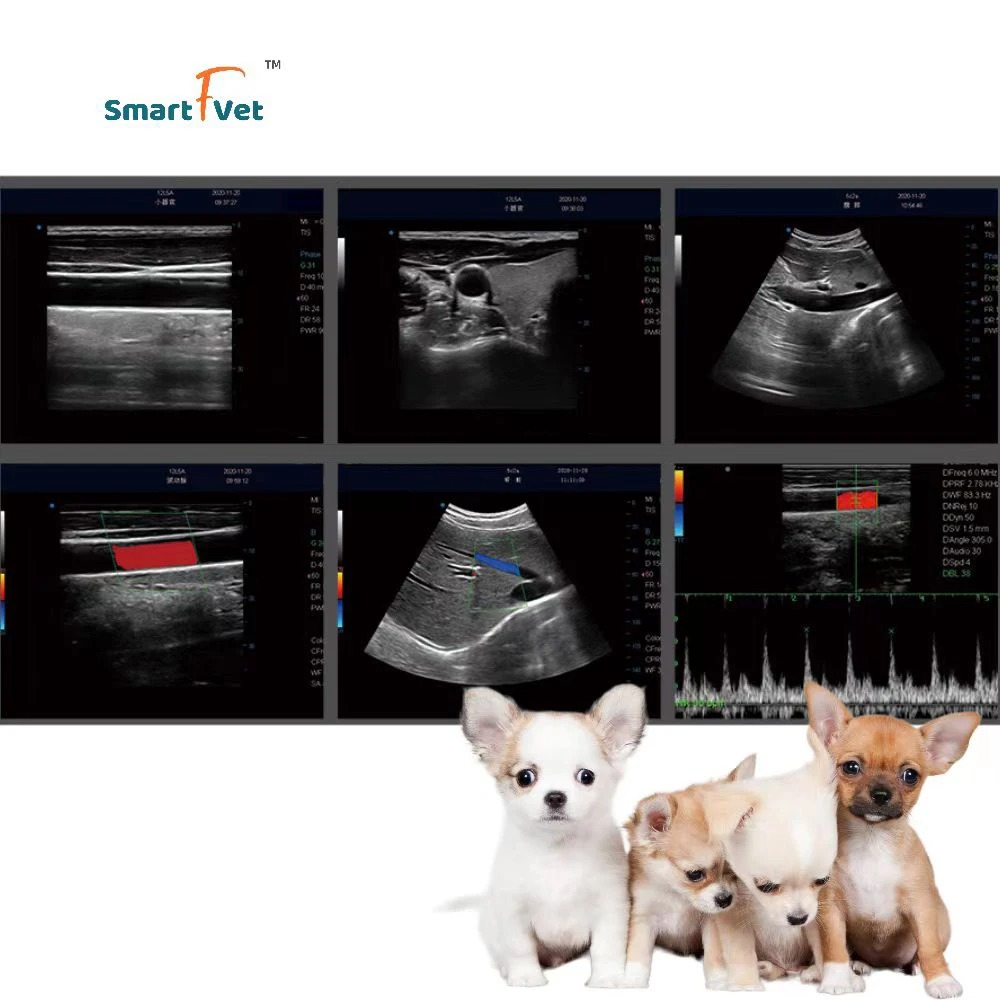

| – Image mode: B、B/M、Color、PW、PDI | |
| – Channel of Ultrasound: 64 | – Puncture Auxiliary Function: In-Plane puncture guide line,Out-Plane puncture guide line,automatic blood vessel measurement. |
| – Gain :30db-105db | |
| – Denoice:0-1-2-3-4 | |
| – Dynamic Range:40-50- 60-70-80-90-100-110 | – Measure: Length, Area, Angle, Heart Rate, Obstetrics |

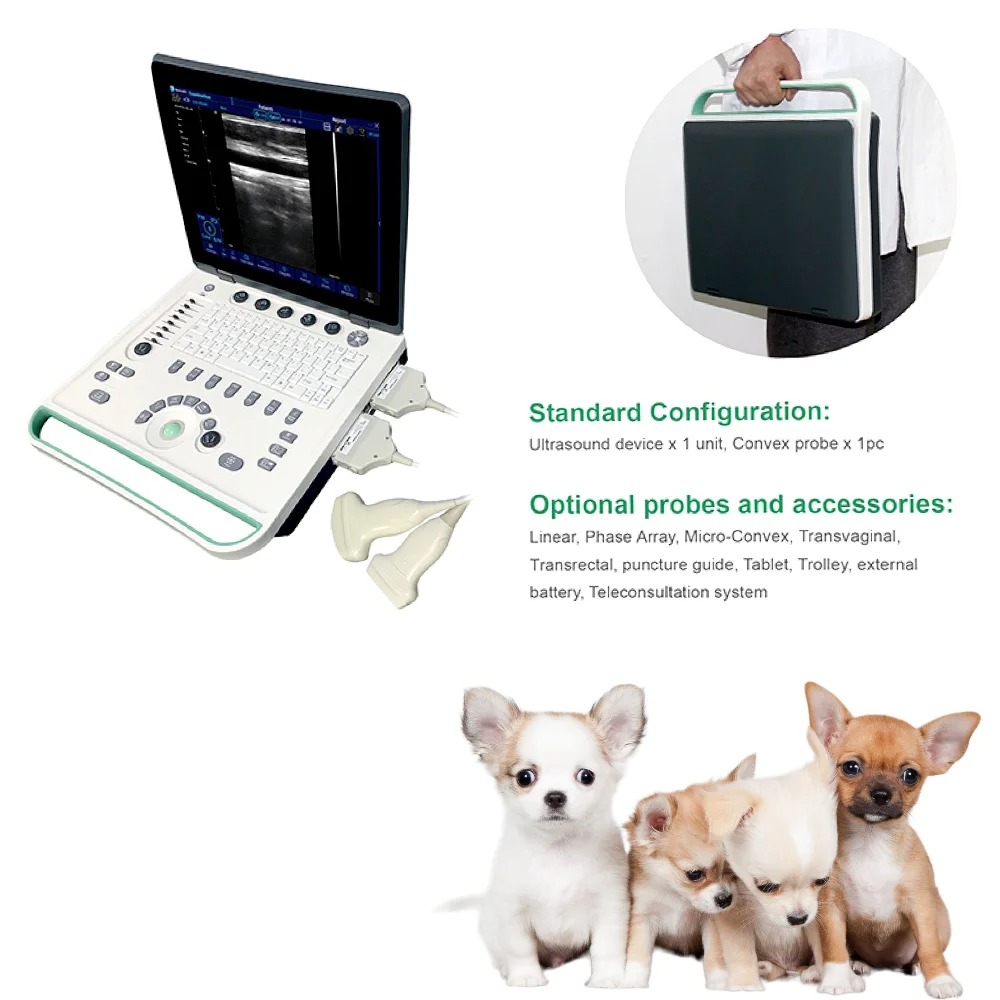

| – Probe type: Convex, Linear, Phase Array, Micro-Convex,Transvaginal, Transrectal | – Image Frame Rate: 18f/s |
| – Operating System : Windows | |
| – Probe Connection Port: 2 | – image Saved: jpg, avi and DICOM format, storage volume 120G |
| – Frequency, Scanning Depth, Angle/Width: | |
| Convex:3.5MHZ/5MHz,90/160/220/305mm,60° | – Image and Report Printing: compatible with most printers |
| Linear:7.5MHz/10MHz,20/40/60/100mm,40mm | – lmage and report print: can work with most model ink/laser printer |
| High Frequency Linear: 10MHz/14MHz, | |
| 20/30/40/55mm,25mm | – Remote transmission: The device can be wired/wire |
| Phase Array: 6.5MHz/8MHz,40-100mm,80° | less Internet access, images and information can be |
| Micro-Convex:3.5MHz/5MHz,90/130/160/200mm,88° | transmitted through the software’s built-in DICOM and |
| Transvaginal: 6.5MHz/8MHz,40/60/80/100mm,149° | WorkList transmission function or other software |
| Biplane Transrectal: Convex 6.5MHz/8MHz, | – Remote Diagnosis: can install any remote diagnosis |
| 40/60/80/100mm，149°; Linear 7.5MHz/10MHz, | software and work |
| 20/40/60/100mm,40mm | – Battery Duration Time: built-in battery, 2 hours |
| Image Adjust: BGain, TGC,DYN, Focus, Depth, | – Device Dimension : L360 x W340x H50mm |
| Harmonic,Denoise, Color Gain, Steer,PRF | – Weight : 4KG |
